Stage set design
Since the early 90s the acid jazz band, Jamiroquai, has been performing across the world to different audiences. Their music and stage presence are unique to them and therefore a design inspiration.
This project proposes the design of a concert stage that follows along with the performance and showcases the band’s DNA, inspired by their music video for the song Automaton.

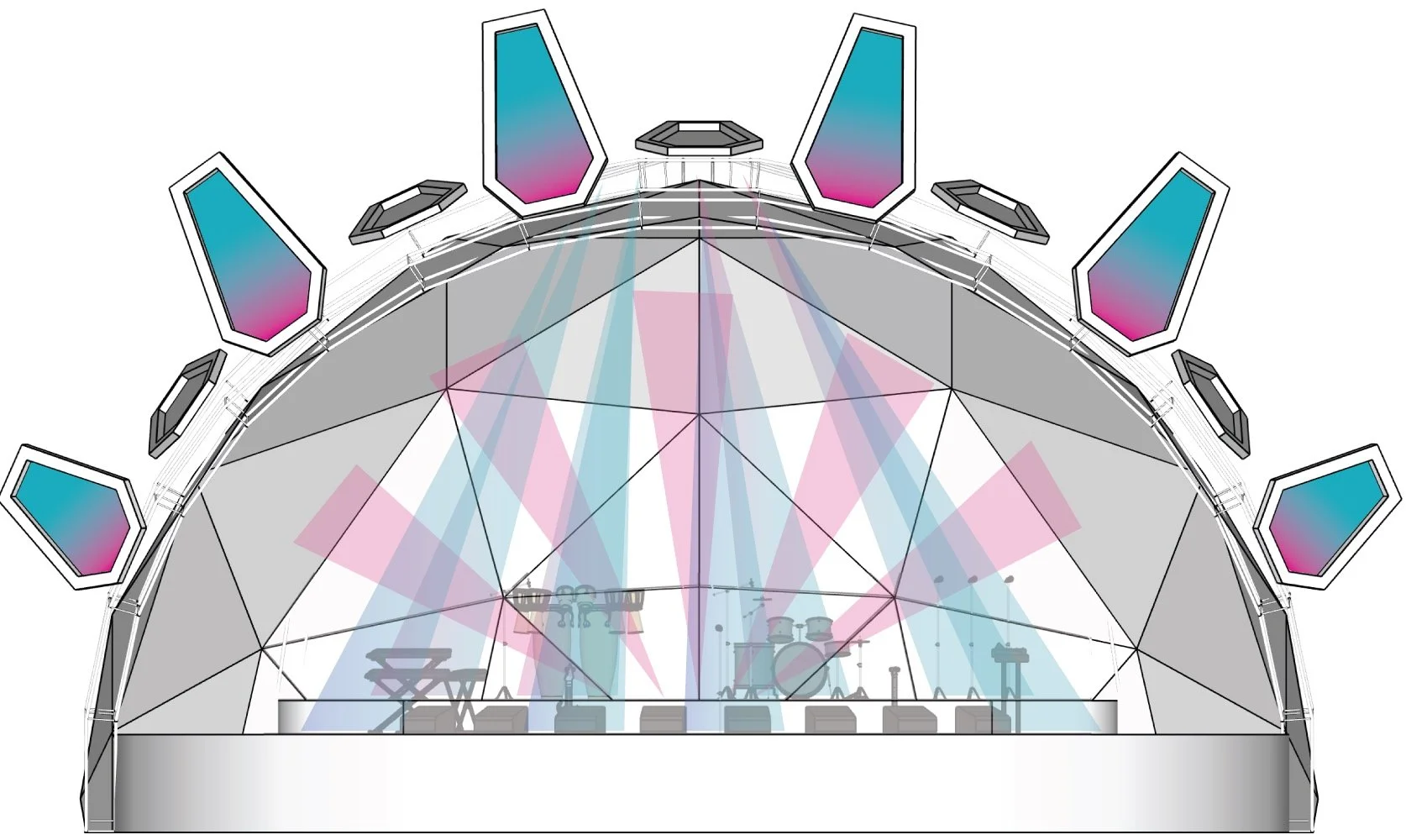

STAGE DESIGN - FRONT VIEW
Using 11 panels distributed along the dome arc, the design allows them to be moved independently and smoothly as the performance goes on.
Each panel is attached to the metal structure through a single-axis rotation system, which allows them to be set to any angle as needed.

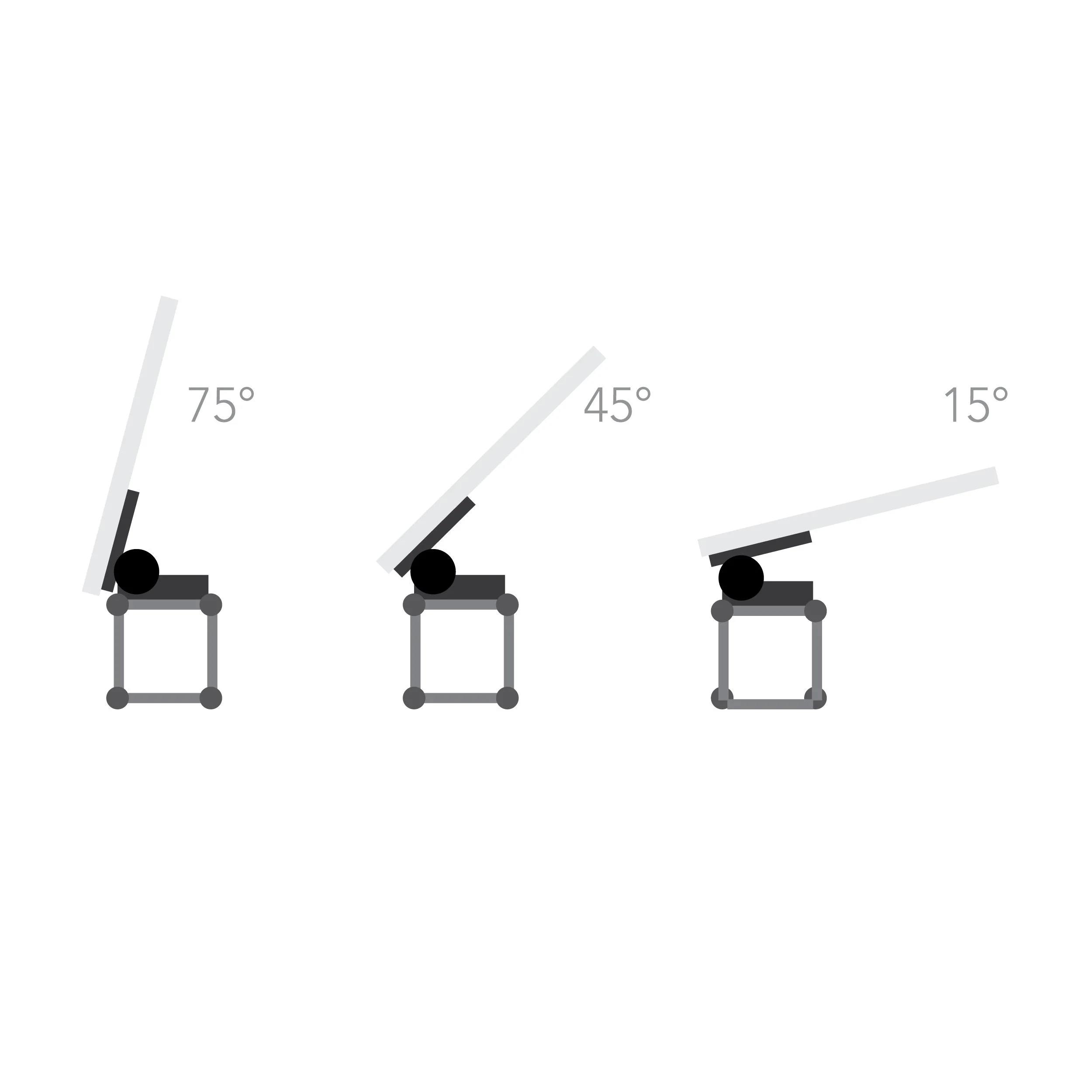

LED PANEL ANGLES

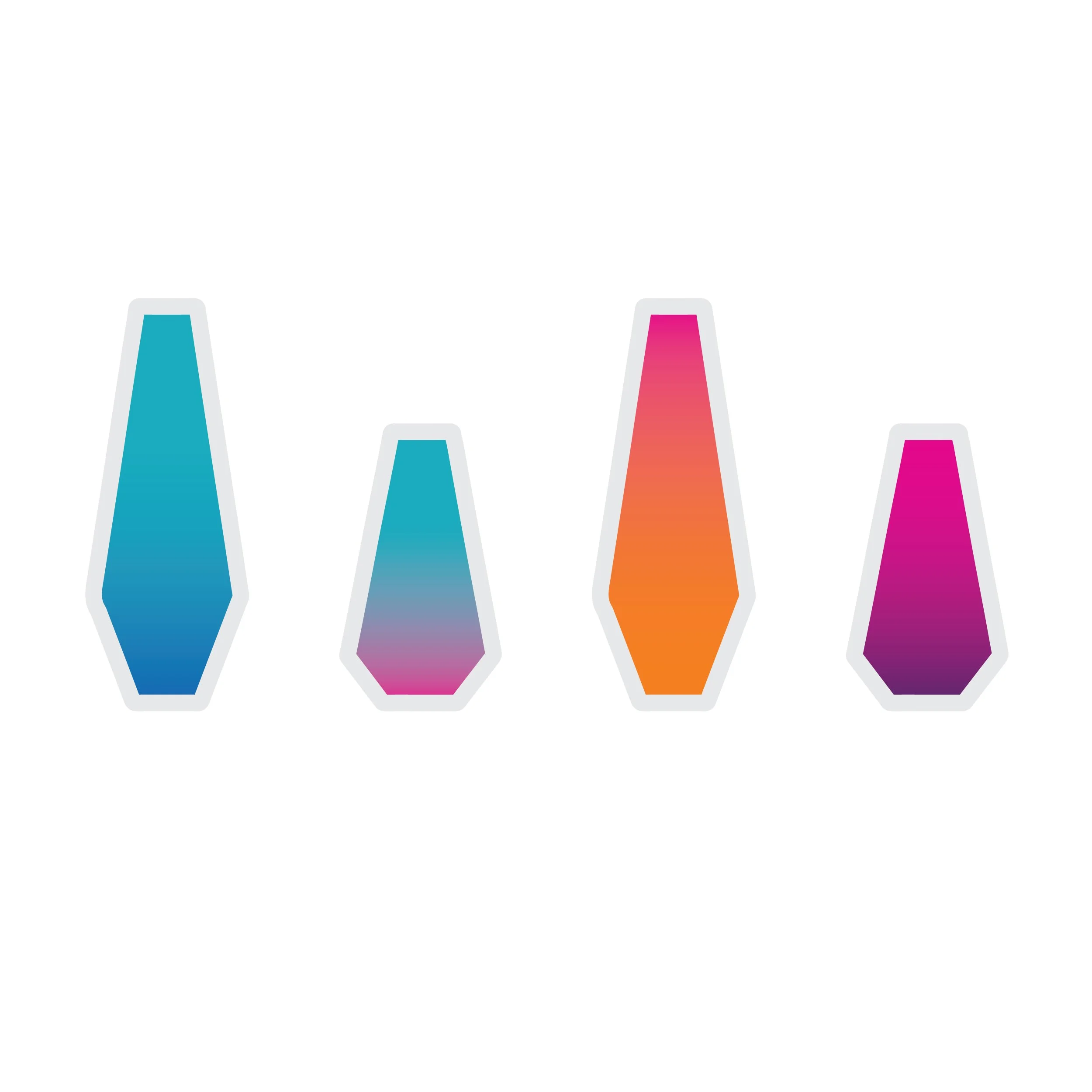

LIGHTING COLOR RANGE
STAGE DESIGN - TOP VIEW
LED panels - Position 1
LED panels - Position 2

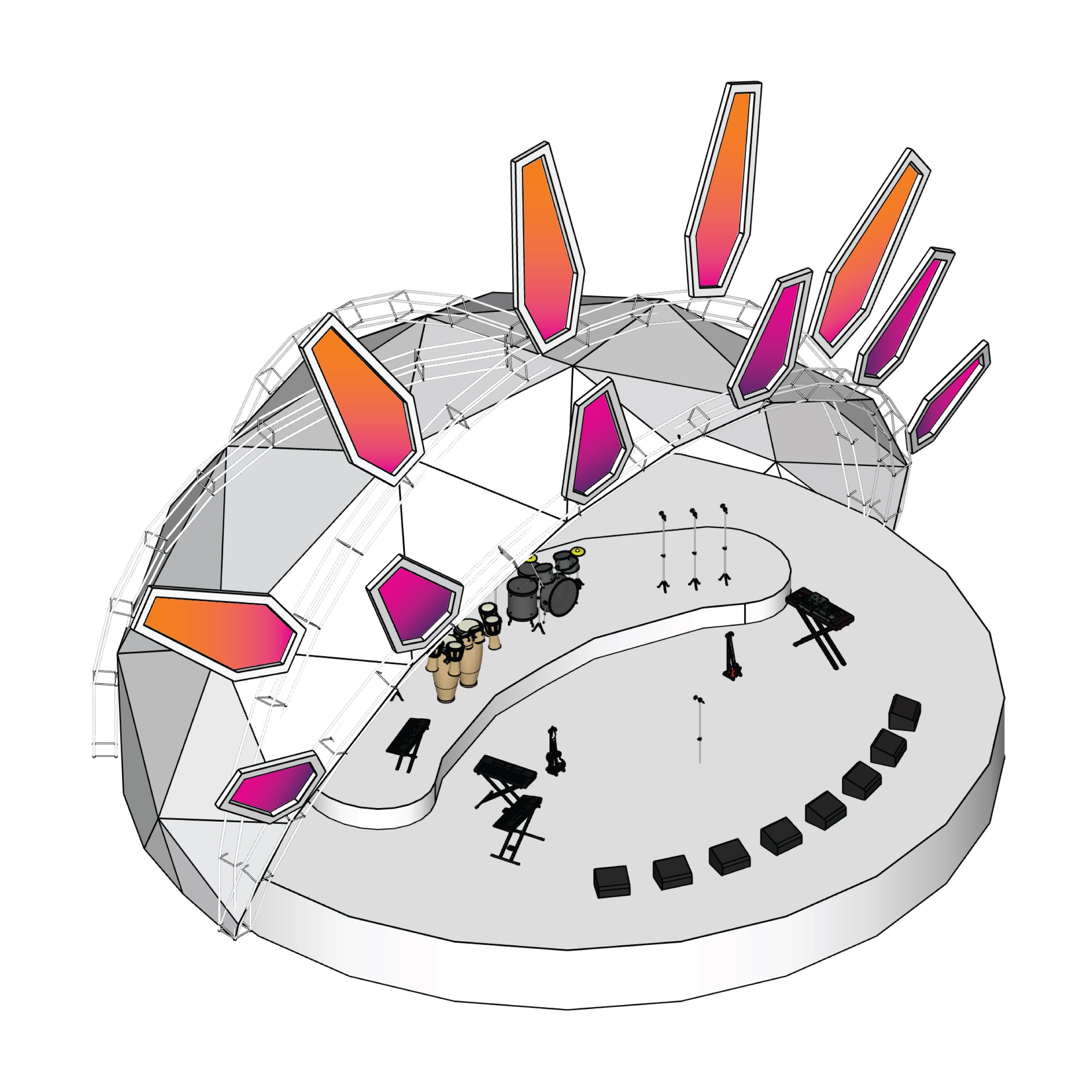

LED panels- Position 3
Project details
Topic: Concert stage design for a band
Course: Exhibition Design Certificate - Pratt Institute
Software: Adobe Illustrator - Sketchup
Materials
Geodesic Dome with inner structure.
Outer metal structure.
LED panels with single-axis rotation system.
Dome Dimensions
Height: 23ft
Diameter: 45ft
